Earthing and Short-Circuiting Devices for Crane Conductor Bars

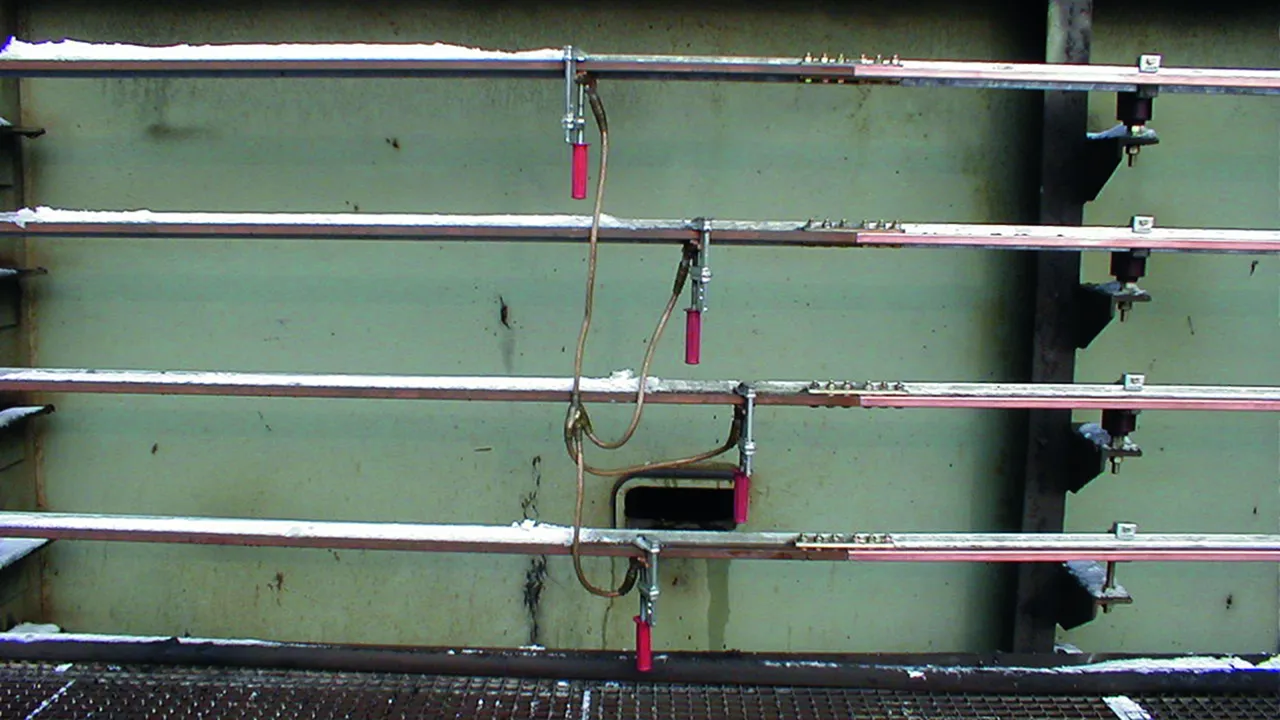

  • For insulated or bare conductor bars of cranes and lifting equipment
  • Allows to lock the clamping range of the clamps in several positions
  • Waterproof, plastic-sheathed cable entries and node unit, with additional ant-kink protection

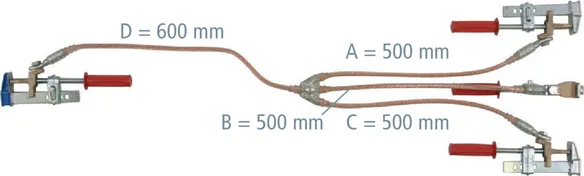

  • Other cable lengths can be selected online via the earthing and short-circuiting configurator

Details

Insulated conductor bar
lorem ipsum
Bare conductor bar
lorem ipsum

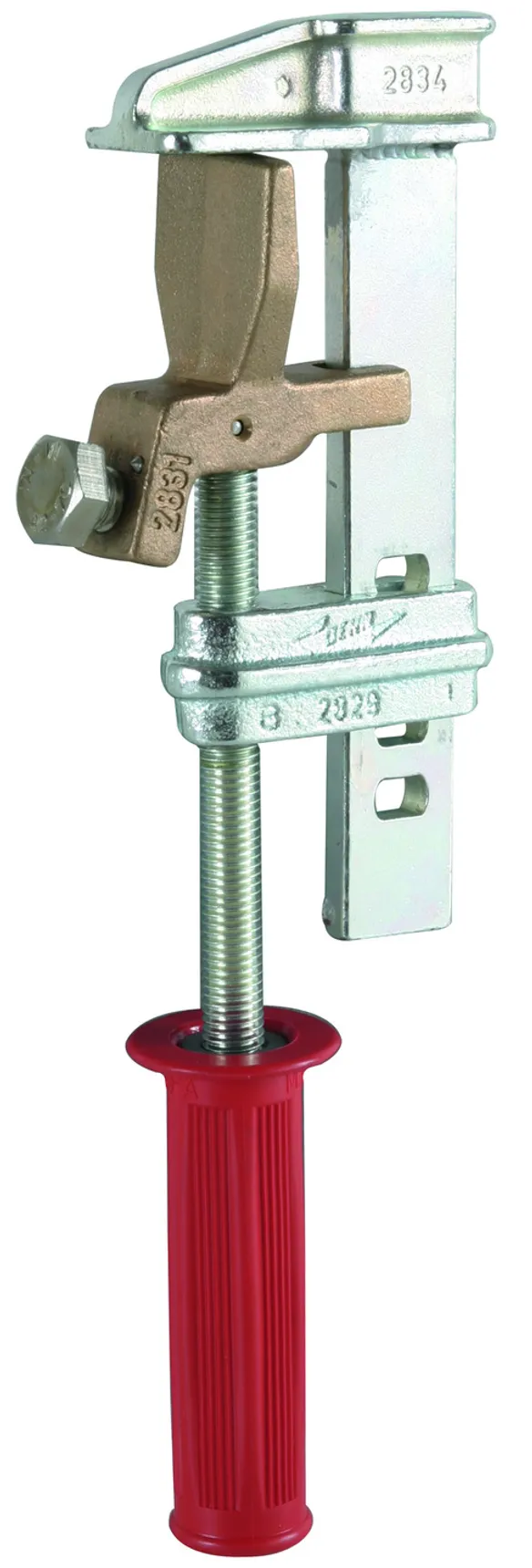

With Screw Clamps for insulated Conductor Bars

3 Products

Part No. VH8QTCZ EKV3 25IS ZK VH8QTCZ

GTIN 4013364163775, Customs tariff No. (EU): 85359000, Gross weight: 5.59 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Clamping range 55 mm
Max. short-circuit current Ik 0.5 s 7.0 kA
Max. short-circuit current Ik 1 s 4.9 kA
Attention: Please state the relevant Variant No. when ordering.

Product VH8QTCZ was added to Notepad.

Go to Notepad

Product VH8QTCZ was added to the cart.

Go to Web-Shop

Part No. VKB2Q6J EKV3 35IS ZK VKB2Q6J

GTIN 4013364163829, Customs tariff No. (EU): 85359000, Gross weight: 5.75 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Clamping range 55 mm
Max. short-circuit current Ik 0.5 s 10.0 kA
Max. short-circuit current Ik 1 s 6.9 kA
Attention: Please state the relevant Variant No. when ordering.

Product VKB2Q6J was added to Notepad.

Go to Notepad

Product VKB2Q6J was added to the cart.

Go to Web-Shop

Part No. VP6YV4T EKV3 50IS ZK VP6YV4T

GTIN 4013364162686, Customs tariff No. (EU): 85359000, Gross weight: 6.30 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Clamping range 55 mm
Max. short-circuit current Ik 0.5 s 14.0 kA
Max. short-circuit current Ik 1 s 9.9 kA
Attention: Please state the relevant Variant No. when ordering.

Product VP6YV4T was added to Notepad.

Go to Notepad

Product VP6YV4T was added to the cart.

Go to Web-Shop

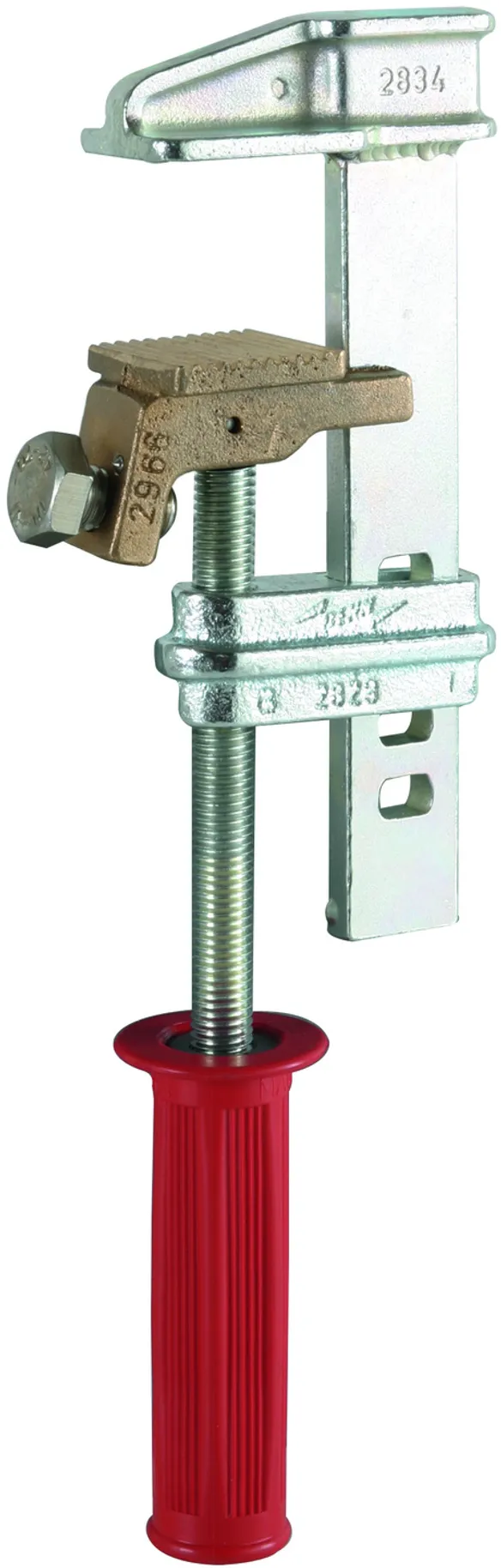

With Screw Clamps for bare Conductor Bars

2 Products

Part No. VQKTK4T EKV3 25BS ZK VQKTK4T

GTIN 4013364163768, Customs tariff No. (EU): 85359000, Gross weight: 5.40 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

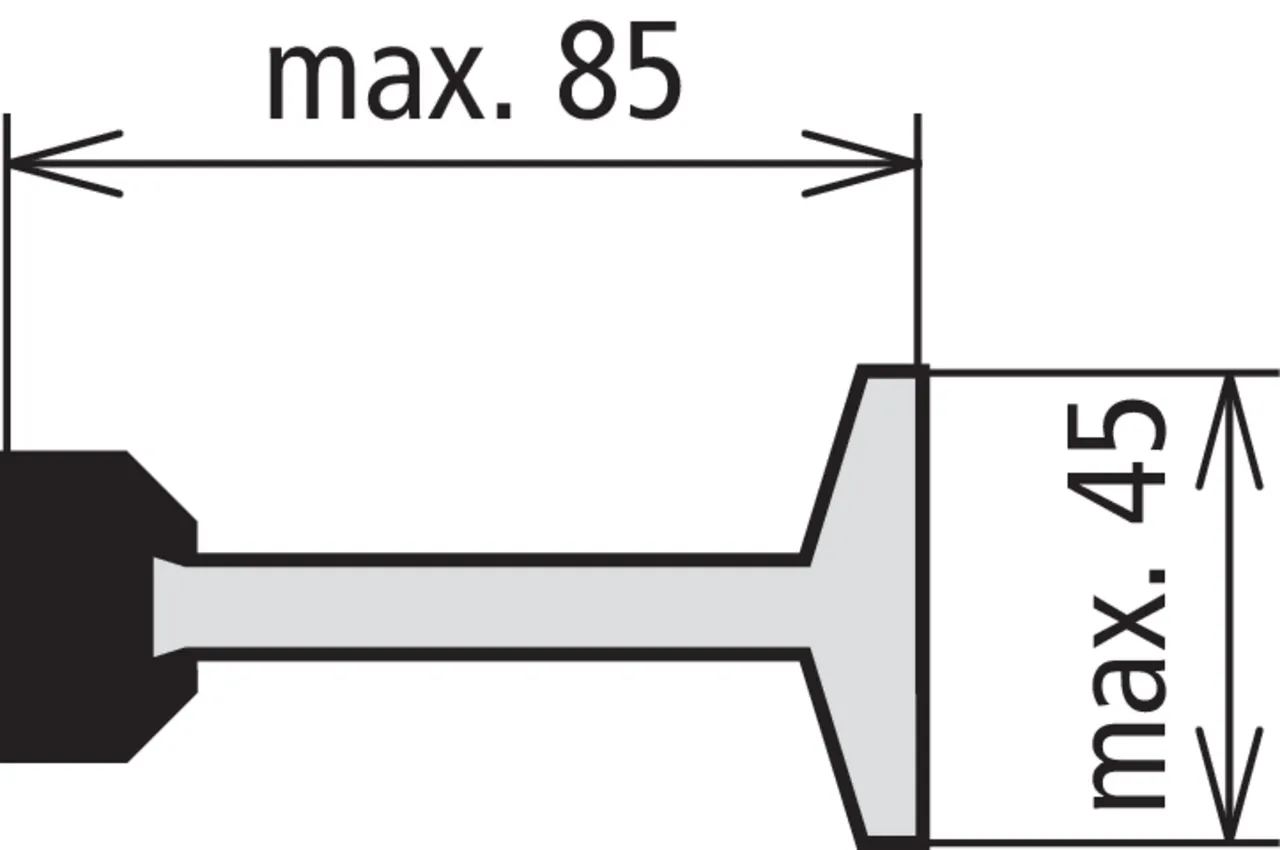

Clamping range 85 mm
Max. short-circuit current Ik 0.5 s 7.0 kA
Max. short-circuit current Ik 1 s 4.9 kA
Attention: Please state the relevant Variant No. when ordering.

Product VQKTK4T was added to Notepad.

Go to Notepad

Product VQKTK4T was added to the cart.

Go to Web-Shop

Part No. VN63A91 EKV3 35BS ZK VN63A91

GTIN 4013364163812, Customs tariff No. (EU): 85359000, Gross weight: 5.56 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Clamping range 85 mm
Max. short-circuit current Ik 0.5 s 10.0 kA
Max. short-circuit current Ik 1 s 6.9 kA
Attention: Please state the relevant Variant No. when ordering.

Product VN63A91 was added to Notepad.

Go to Notepad

Product VN63A91 was added to the cart.

Go to Web-Shop
