DEHN protection solutions
AC/DC charging stations
See the DEHN protection solutions for yourself. You will find an example presentation of our specific solution and all of the products, documents and services associated with it. If you still have more questions, we are here for you.
The DEHN services
for AC/DC charging stations
We also support you as a producer of wall boxes, as an owner, project developer or planning engineer.
DEHN products for AC/DC charging stations
You are ideally set up with us: We offer you a comprehensive, useful and harmonised complete range of products for surge protection, lightning protection and safety equipment. For efficient planning, convenient purchasing, seamless installation and ongoing maintenance.

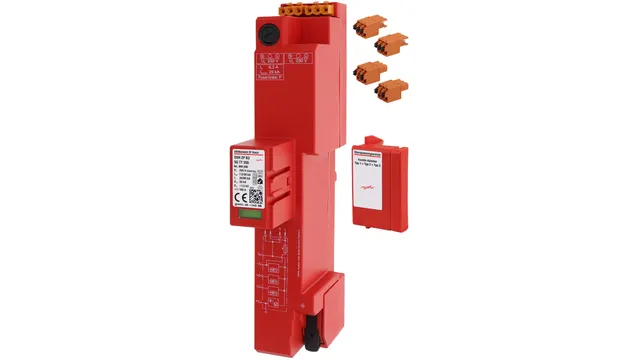

Combined arrester with RAC spark gap technology and remote signalling contact for protecting the charging infrastructure.
Protection upstream of the meter: combined arrester with RAC spark gap technology for the 40‑mm busbar system.

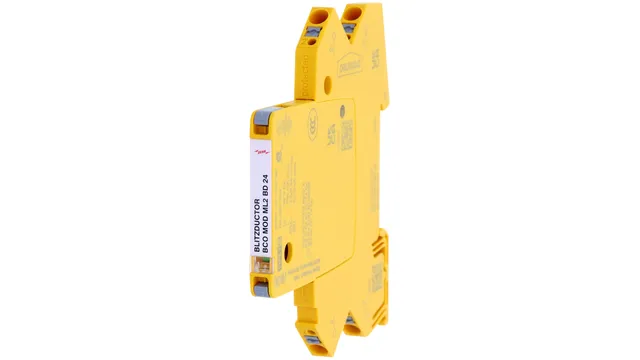

Modular combined arrester for protecting measuring and control circuits, bus and telecommunication systems.
DEHNguard ME/SE DC ... (FM)
Modular combined arrester up to 950 V DC with remote signalling contact. Used in DC-supplied high-power charging stations, for example.

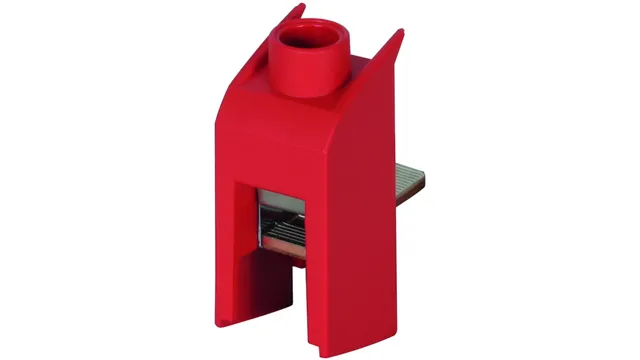

STAK wiring accessories
Allows EMC-optimised feed-through wiring according to IEC 60364-5-54, clause -534.
Equipotential bonding bars
Equipotential bonding bars for protective and functional equipotential bonding as well as lightning equipotential bonding.

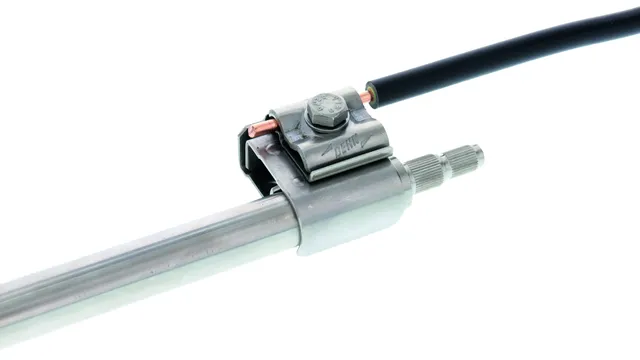

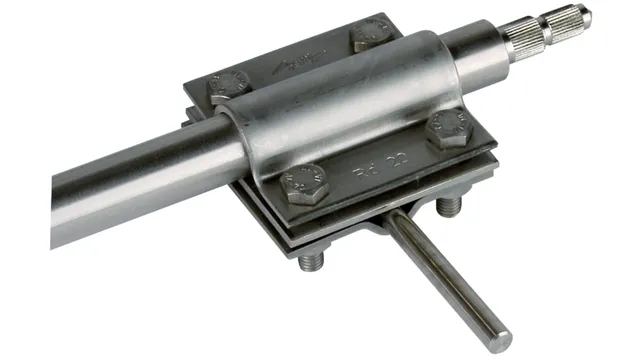

Permanently corrosion-resistant: for cross and parallel connection of round conductors or cables to earth rods.
Permanently corrosion-resistant: for cross and parallel connection of round conductors, flat strips or cables to earth rods.

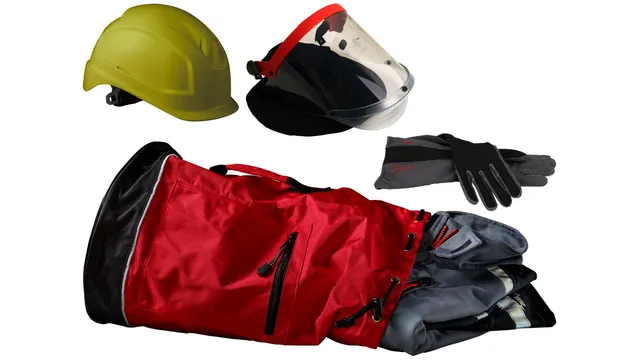

DEHNcare ArcFit indoor set
Personal protective equipment provides safety in the event of arc faults. For use indoors.
Rule 1: Disconnect completely
NH fuse puller with sleeve, for actuating NH fuses of sizes 00, 1, 2 and 3.
Rule 2: Secure against re-connection

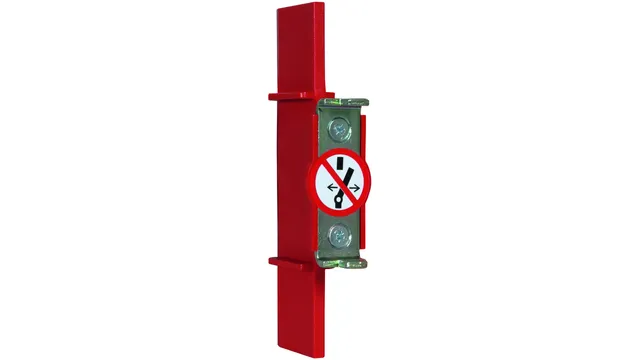

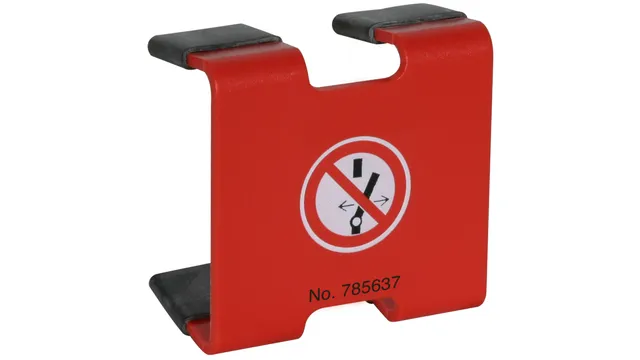

Locking element for DIN-rail-mounted devices, 3 modules.
Rule 3: Verify that the installation is dead
Two-pole SPN voltage detector with phase, rotating field and continuity test.

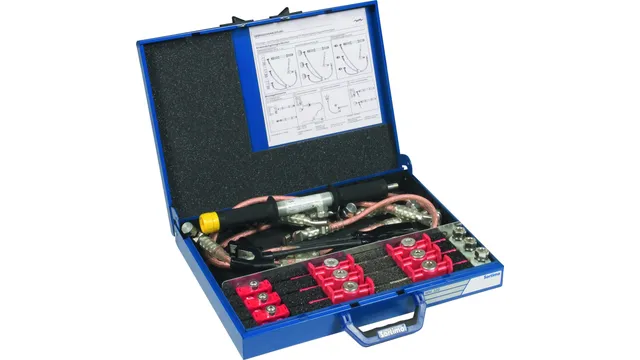

Rule 4: Earthing and short-circuiting
Earthing and short-circuiting devices in a robust sheet metal case.
If you need more information or another document format, we are ready to help you.
|Properly protected – Safe charging
|Protection concepts for the charging infrastructure of electric mobility
|.pdf 2.3 MB
|Selection guide – Lightning current and surge protective devices
|Protection concept for indoor and outdoor parking spaces
|.pdf 0.7 MB
|Lightning and surge protection for the electromobility charging infrastructure
|.pdf 0.3 MB
|DEHN protects intelligent power grids
|Security of supply for today and tomorrow with lightning and surge protection
|.pdf 3.8 MB
|Protect your employees
|.pdf 5.5 MB
|DEHNguard ME DC Y 950 FM
|For maximum system and operational safety
|.pdf 0.3 MB
|DEHN Test Centre
|DEHN tests and analyses
|.pdf 1.7 MB
|Hypercharger DC charging stations by alpitronic GmbH / S.r.l.
|.pdf 0.8 MB
|Charging infrastructure for electric mobility from Spelsberg
|.pdf 0.9 MB
|ABL Charging Poles for Electromobility
|.pdf 1.1 MB
|Lightning and surge protection for electromobility
|.pdf 3.1 MB
|Earthing and equipotential bonding measures for the charging infrastructure of electric mobility
|.pdf 1.5 MB
alpitronic GmbH / S.r.l.

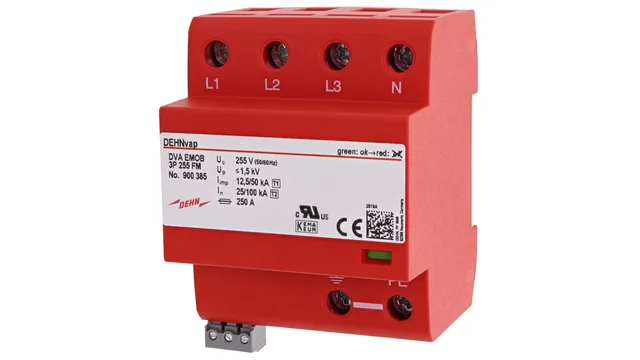

alpictronic opts for the tested quality solution DEHNvap EMOB. The combined arrester specially designed for charging infrastructure with protective effect type 1 + 2 + 3 can be used universally and offers maximum protection against lightning currents and surges.Download alpitronic reference
