Fixing Elements for Supporting Tubes

1 Product

Part No. 105342 WB D40.50 SE WA46 V2A

GTIN 4013364111141, Customs tariff No. (EU): 85389099, Gross weight: 514.00 g, PU: 1.00 pc(s)

Images

Additional information

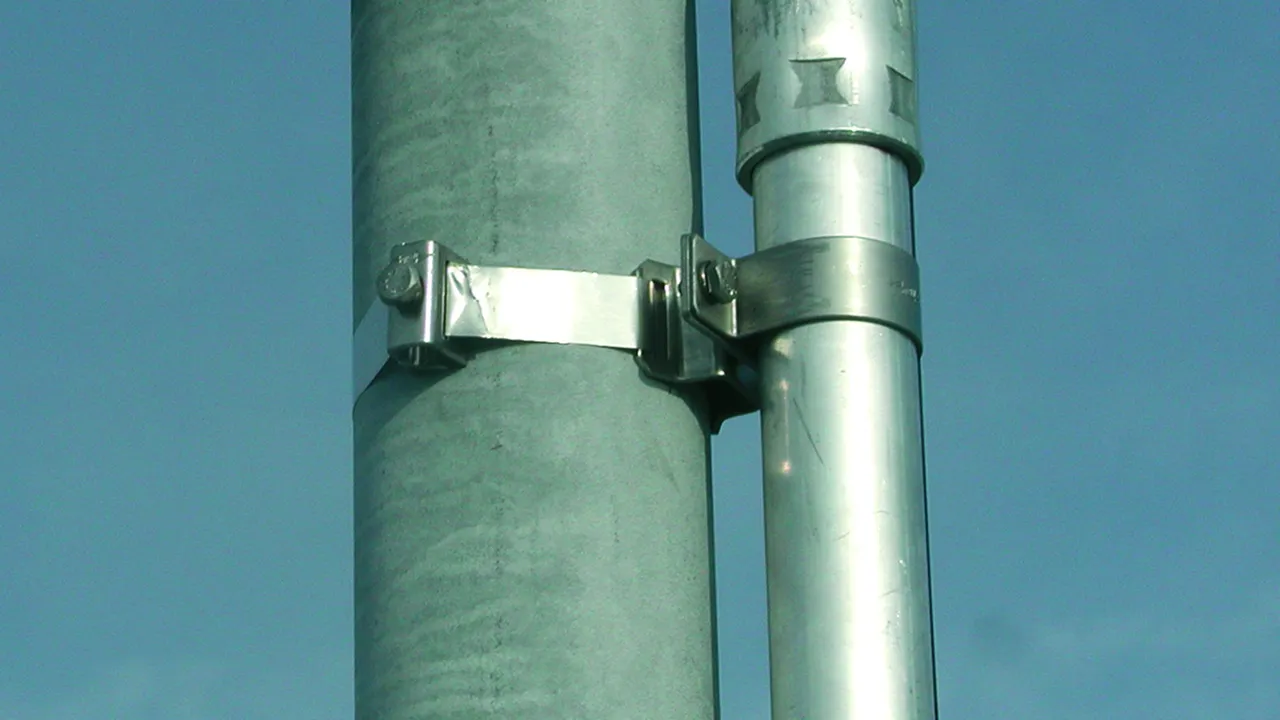

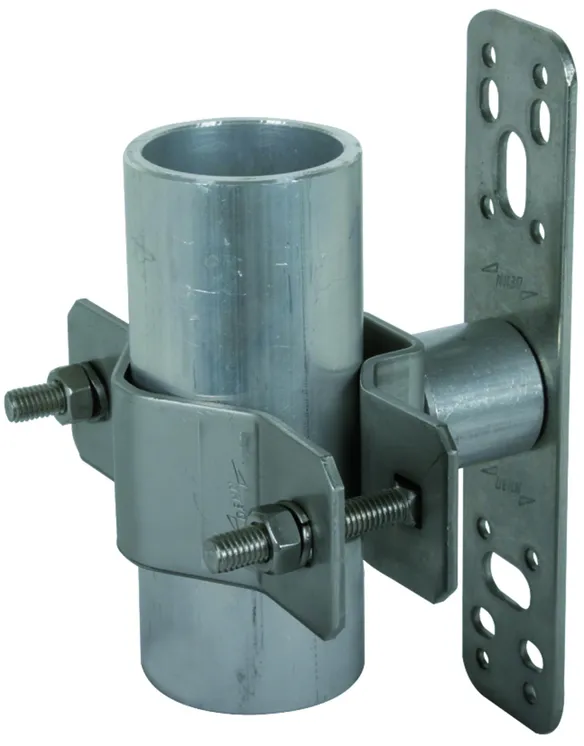

Holder for air-termination rods D40 and DEHNcon-H, StSt, vertical installation
Holder for air-termination rods D40 and DEHNcon-H for
fixing air-termination rods D40 or supporting tubes
on the structure to be protected or on the wall

Brand: DEHN
Type: WB D40.50 SE WA46 V2A
Part No.: 105342
or equivalent.

Certificates



Technical data

Material StSt

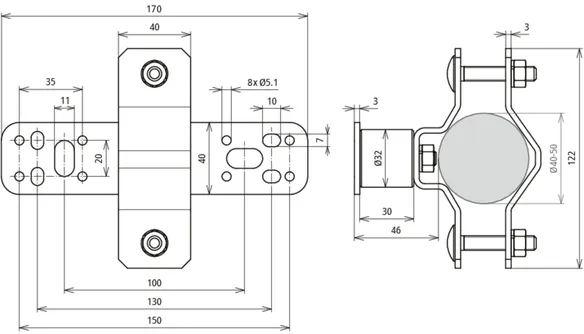

Fixing [8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Distance from wall 46 mm
Clamping range for air-termination rod 40-50 mm
Material of screw StSt
